KM Carburetor

Honda CX500 Complete Carburetor Seal Kit - For 1978-1982 Models WITH Accelerator Pump

Honda CX500 Complete Carburetor Seal Kit - For 1978-1982 Models WITH Accelerator Pump

$90.00 USD
$90.00 USD
Sale More on the Way
Shipping calculated at checkout.

This kit comes with every O-ring, gasket and diaphragm you need to make your Honda CX500 carburetors look and function better than new. We partnered with BJ from Brickhouse Builds to make sure this kit was the highest quality and easiest to use on the market!

All fuel related parts are made from Viton FKM rubber to ensure a long service life even when exposed to today's ethanol containing fuel. Each part is neatly bagged and labelled together so you know exactly where each part goes during your rebuild.

We even include a press-fit idle jet removal tool so you always have the right tools for the job!

All parts except round O-rings and jet tool are made in Japan!  Available in your choice of OEM Zinc or Bright plating.

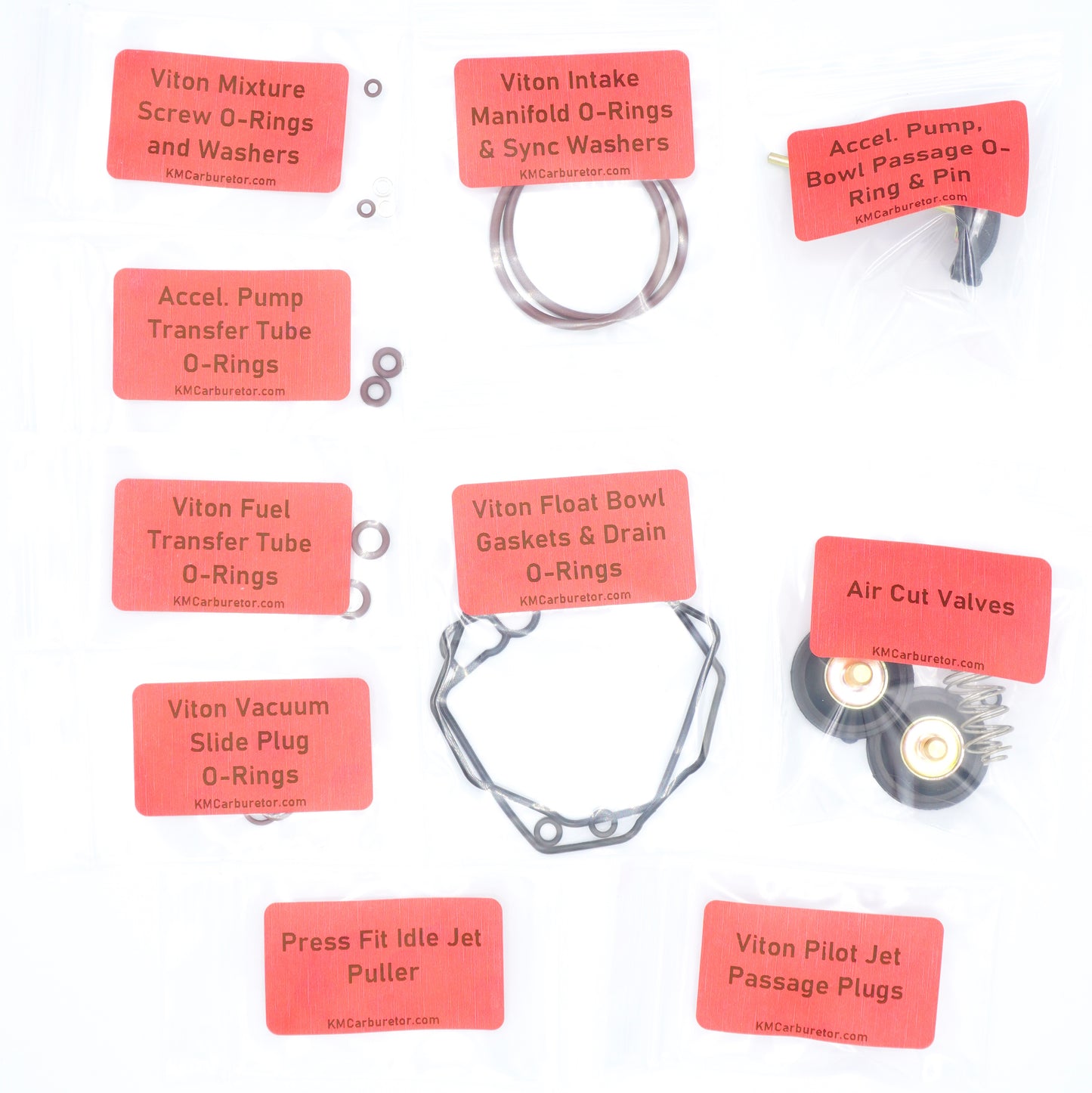

Our kit includes the following:

  • Air Cut Valves
  • VIton Accelerator Pump
  • Viton Accelerator Pump Bowl Passage O-Ring
  • Viton Accelerator Pump Tube O-rings
  • Viton Pilot Jet Plugs
  • Viton Float Bowl Gaskets
  • Viton Mixture Screw O-rings and Washers
  • Viton Fuel Tube O-rings
  • Viton Vacuum Slide Plug O-rings
  • Viton Intake Manifold O-rings
  • Viton Float Bowl Drain O-rings
  • Press-fit Pilot Jet Extractor

Check out BJ's video for a look at our kits:


This kit is ONLY for CX500 models WITH an accelerator pump.





Fits These Models

  • 1981 Honda GL500
  • 1980 Honda CX500 C
  • 1981 Honda CX500 C
  • 1982 Honda CX500 C
  • 1980 Honda CX500 D
  • 1981 Honda CX500 D
  • 1982 Honda GL500
  • 1981 Honda GL500 I
  • 1982 Honda GL500 I
  • 1981 Honda CM400 C
  • 1980 Honda CB400 T
  • 1981 Honda CB400 T
  • 1980 Honda CM400 A
  • 1981 Honda CM400 A
  • 1980 Honda CM400 T
  • 1981 Honda CM400 T
  • 1980 Honda CM400 E
  • 1981 Honda CM400 E
  • 1982 Honda CM450 E
  • 1982 Honda CB450 T
  • 1982 Honda CM450 C

Country of Origin

  • Japan
  • Taiwan
  • Vietnam
