Honda Carburetor Float Bowl Drain Screw with Viton O-ring
Honda Carburetor Float Bowl Drain Screw with Viton O-ring
Couldn't load pickup availability

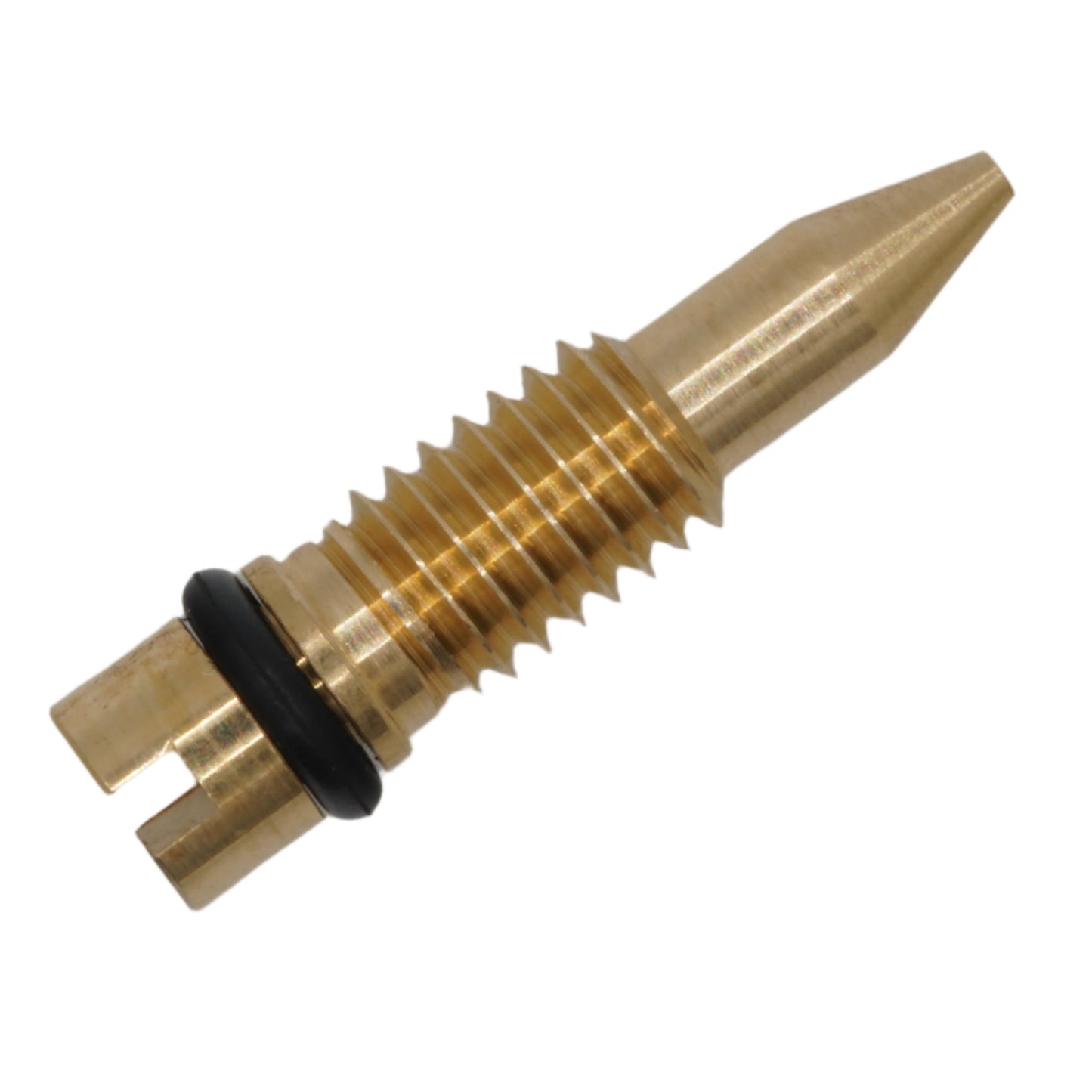

This replacement drain screw is solid brass and made in Japan.
Contrary to popular belief, the tapered part of the screw is what actually creates the seal when tightened into the float bowl, not the o ring. The soft brass is better at forming into the small imperfections in the float bowl seat creating a better seal than a plated steel drain screw. The o ring prevents fuel from flowing out passed the head of the drain screw when it is loosened to allow the bowl to drain through the overflow tube.
These fit the following applications:
ATC250 ES 1985 - 1987
ATC250 SX 1985 - 1987
TRX250 1985 - 1987
CM250C 1982 - 1983
CB400T CB400A CM400A CM400C CM400E 1978 - 1981
CB450SC 1982 - 1986
CB450T 1982
CM400 T C 1980 - 1981
CX500 1981 - 1982
CX650 1983
FT500 ASCOT 1982 - 1983
VT500 VT500C SHADOW 1983 - 1986
GL500 1981 - 1982
GL650 1983
ATC350 X 1985 - 1986
TRX350 Fourtrax 1986 - 1989
CB550SC Nighthawk 1983
CB650SC Nighthawk 1983 - 1985
CB700SC Nighthawk 1984 - 1985
NT650 Hawk 1988 - 1991
VF700C Magna 1984 - 1987
VF700 Interceptor Sabre and Shadow 1984 - 1985
VF750 C V45 Magna 1982 - 1983
VF750 F V45 Interceptor 1983 - 1984
VF750 S V45 Sabre 1982 - 1983
VT750C Shadow 1983
VF750C Shadow 1998 - 2000
VT800C Shadow 1988
VF1000F Interceptor 1984
VF1000R 1985 - 1986
VF1100 1983 - 1986
VT1100C Shadow 1985 - 2000
CB550 K F 1977 - 1978
CB650 & Custom SC 1979 - 1983
CB750 Nighthawk 1991 - 1993 1995 - 2001
CB750 K 1977 - 1978
CB750 F 1977 - 1978
CB750 A 1976 - 1978
CB750 C CUSTOM 1977 -1983
CB750F 1980 - 1982
CB900 C Custom 1980 -1982
CB900 F 1981 1982
CB1000 CB1000C CB1000F 1983
CB1100F ST1100 1997 - 2002
GL1200
GL1500
CBX1000 CBX 1000 1979 - 1982
1991 Honda CBR600 F2
1991 Honda CBR600F2
1992 Honda CBR600F2
1993 Honda CBR1000F
1993 Honda CBR600 F2
1993 Honda CBR600F2
1993 Honda CBR900RR
1994 Honda CB1000
1994 Honda CBR1000F
1994 Honda CBR600 F2
1994 Honda CBR600F2
1994 Honda CBR900RR
1994 Honda VF750C MAGNA
1994 Honda VF750C MAGNA
1994 Honda VFR750F INTERCEPTOR
1995 Honda CB1000
1995 Honda CBR1000F
1995 Honda CBR600F3
1995 Honda CBR900RR
1995 Honda VF750C MAGNA
1995 Honda VF750C MAGNA
1995 Honda VF750CD MAGNA DELUXE
1995 Honda VF750CD MAGNA DELUXE
1995 Honda VFR750F INTERCEPTOR
1996 Honda CBR1000F
1996 Honda CBR600F3
1996 Honda CBR600SJR SMOKIN JOES RACING
1996 Honda CBR900RR
1996 Honda VF750C MAGNA
1996 Honda VF750C MAGNA
1996 Honda VF750CD MAGNA DELUXE
1996 Honda VF750CD MAGNA DELUXE
1996 Honda VFR750F INTERCEPTOR
1997 Honda CBR1100XX
1997 Honda CBR600F3
1997 Honda CBR900RR
1997 Honda VF750C MAGNA
1997 Honda VF750C MAGNA
1997 Honda VF750C2 MAGNA DELUXE
1997 Honda VF750C2 MAGNA DELUXE
1997 Honda VFR750F INTERCEPTOR
1998 Honda CBR1100XX
1998 Honda CBR600F3
1998 Honda CBR600SE SMOKIN JOES RACING
1998 Honda CBR900RR
1998 Honda VF750C MAGNA
1998 Honda VF750C MAGNA
1998 Honda VF750C2 MAGNA DELUXE
1998 Honda VF750C2 MAGNA DELUXE
1999 Honda CBR600F4
1999 Honda CBR900RR
1999 Honda VF750C MAGNA
1999 Honda VF750C MAGNA
1999 Honda VF750C2 MAGNA DELUXE
1999 Honda VF750C2 MAGNA DELUXE
2000 Honda CBR600F4
2000 Honda VF750C MAGNA
2000 Honda VF750C MAGNA
2000 Honda VF750C2 MAGNA DELUXE
2000 Honda VF750C2 MAGNA DELUXE
2001 Honda VF750C MAGNA
2001 Honda VF750C MAGNA
2002 Honda VF750C MAGNA
2002 Honda VF750C MAGNA
2003 Honda VF750C MAGNA
2003 Honda VF750C MAGNA
2004 Honda CBR600F4
2000 - 2007 XR650R
CH80 all years
Fits These Models
Fits These Models
Country of Origin
Country of Origin
- Japan
